● 7 Inch OLED Display
● 100000:1 Contrast Ratio
● 10Bit-1.07 Billion Colors
● 4K60p HDMI
● 3G-SDI (OL7S)
● Aluminum Alloy Housing

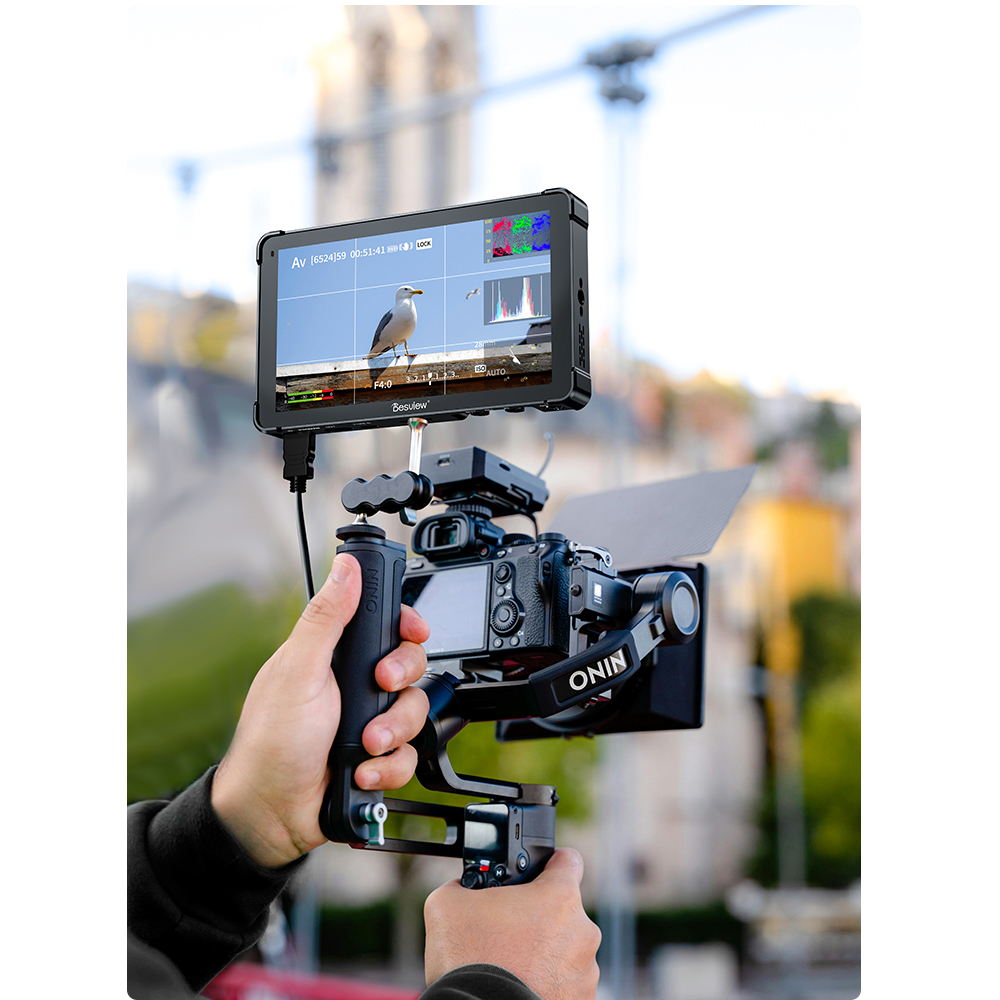

OL7
|
Ultimate Performance Power Unleashed S-Class Color Accuracy |
 |
 |
OLED Image Presentation |

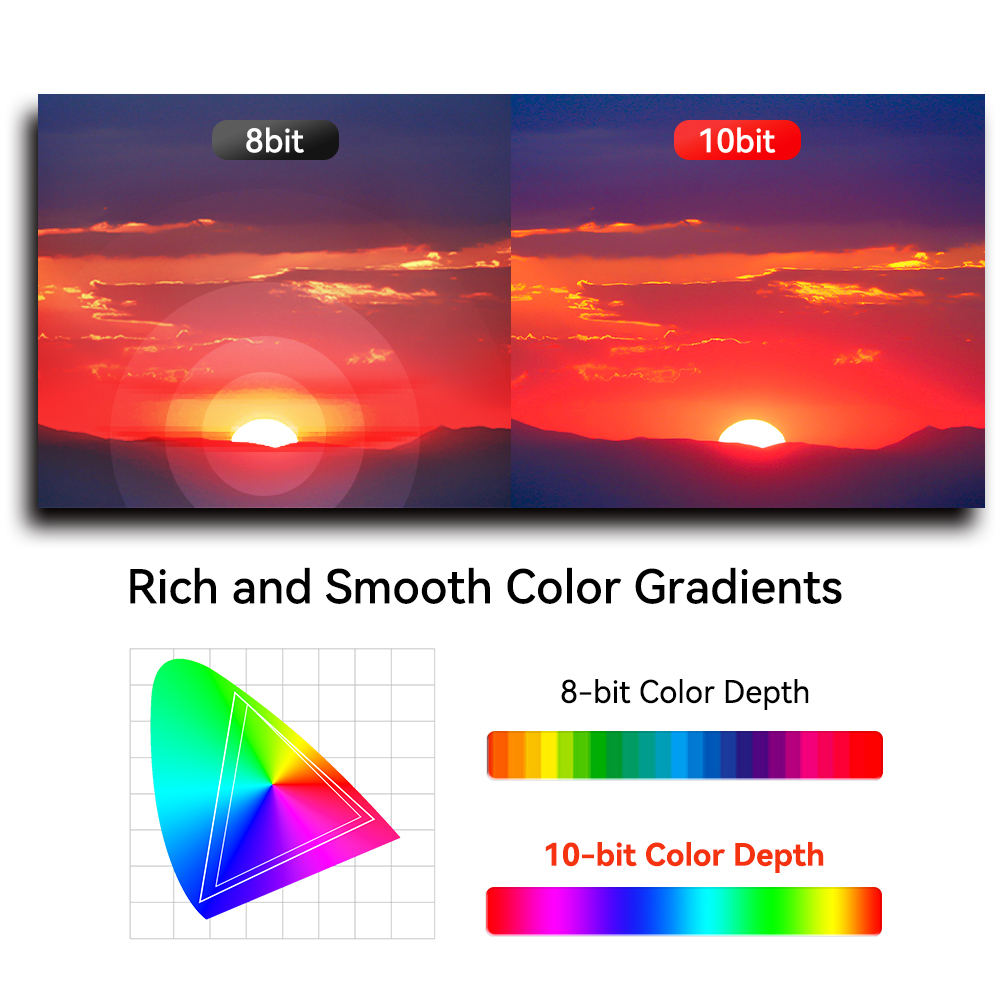

| 10-Bit Color Depth Professional Visual Effects Native 10-bit color depth hardware support enables over a billion colors to be displayed accurately. With precise color and brightness control, colors appear smooth and seamless, offering an exceptional color performance experience. |
 |
 |

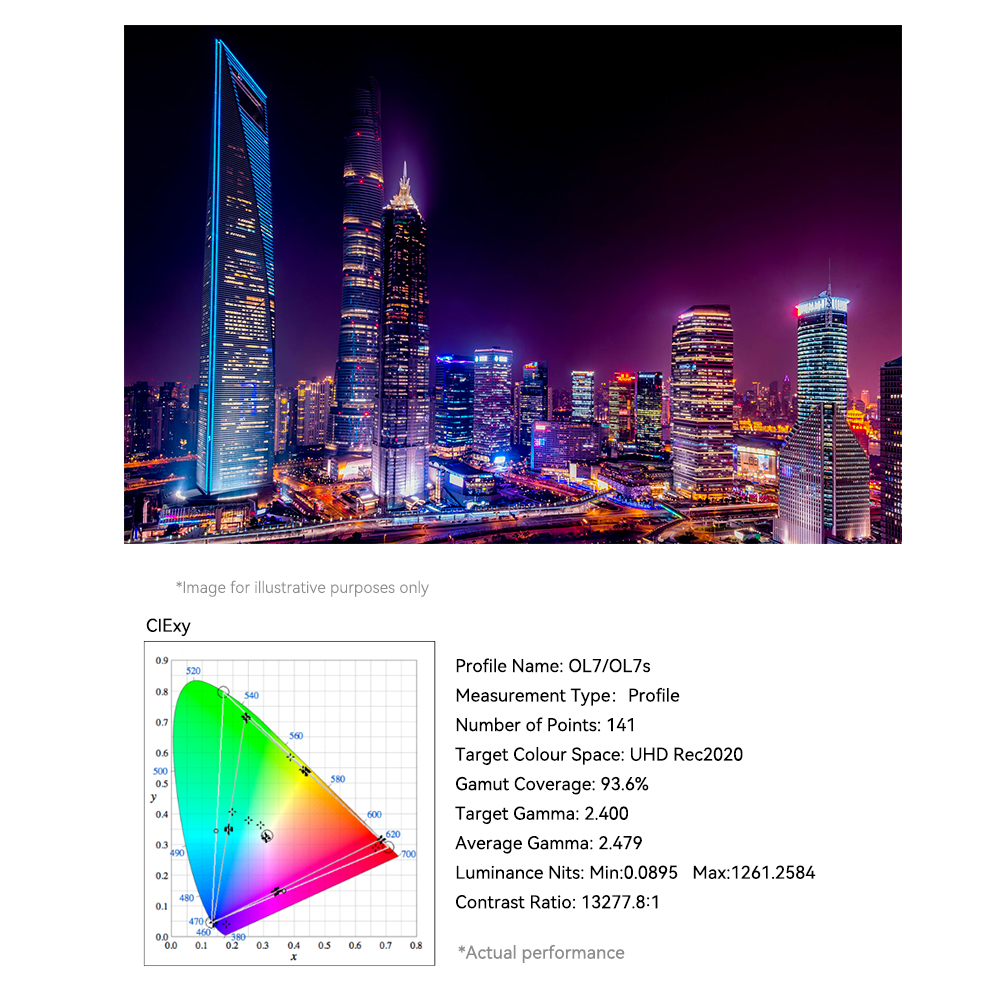

Film-grade Ultra-wide Color Gamut More accurate color presentation Delivering rich colors More realistic hues Professional and precise color calibration |
|

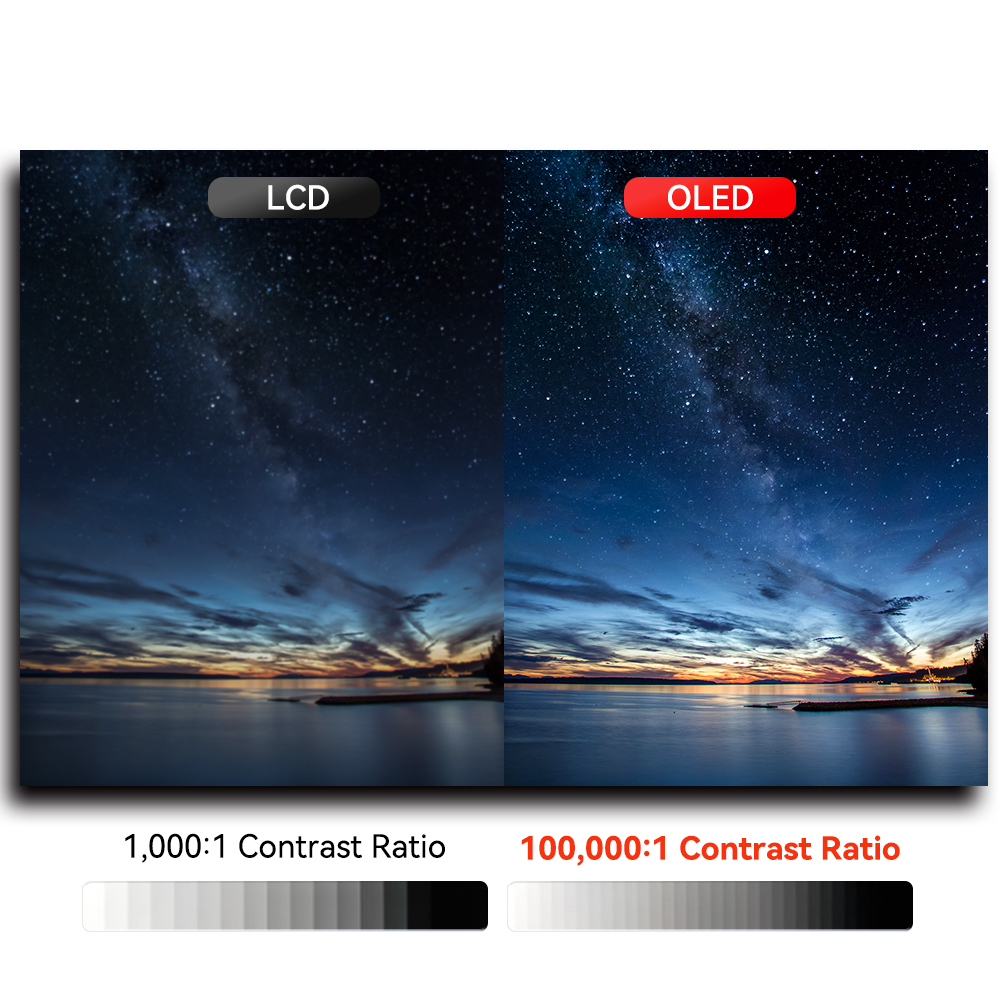

100,000:1 Contrast Ratio Reproduction Capability |
 |
 |

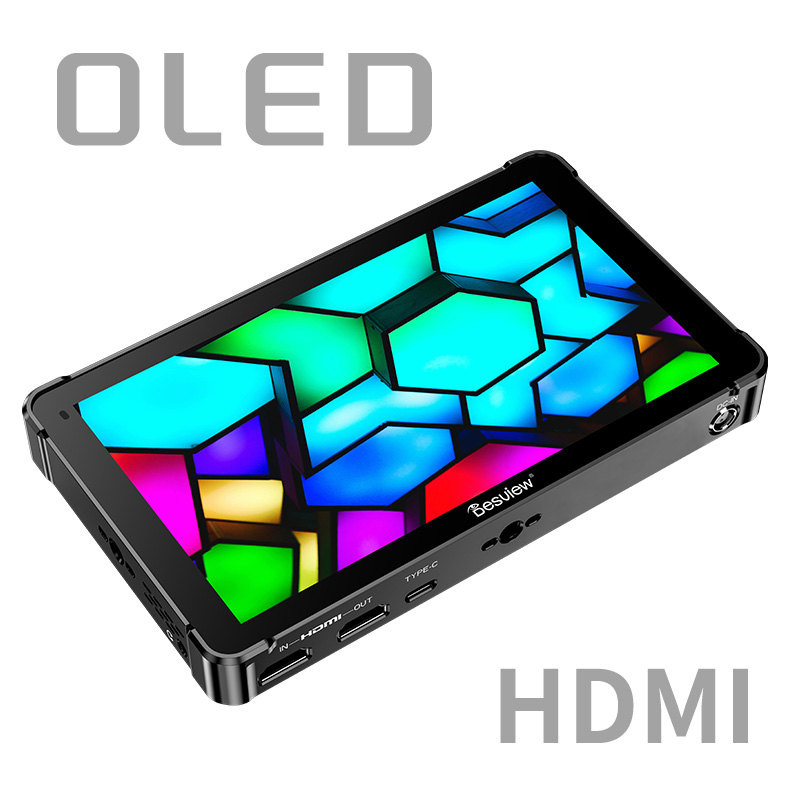

4K60p HDMI Input/Output HDMI 2.0 offers significant improvements in transmission speed and functionality, supporting a maximum of 4096 x 2160P at 60Hz. This allows for lossless transmission of fine textures and smooth motion.
|

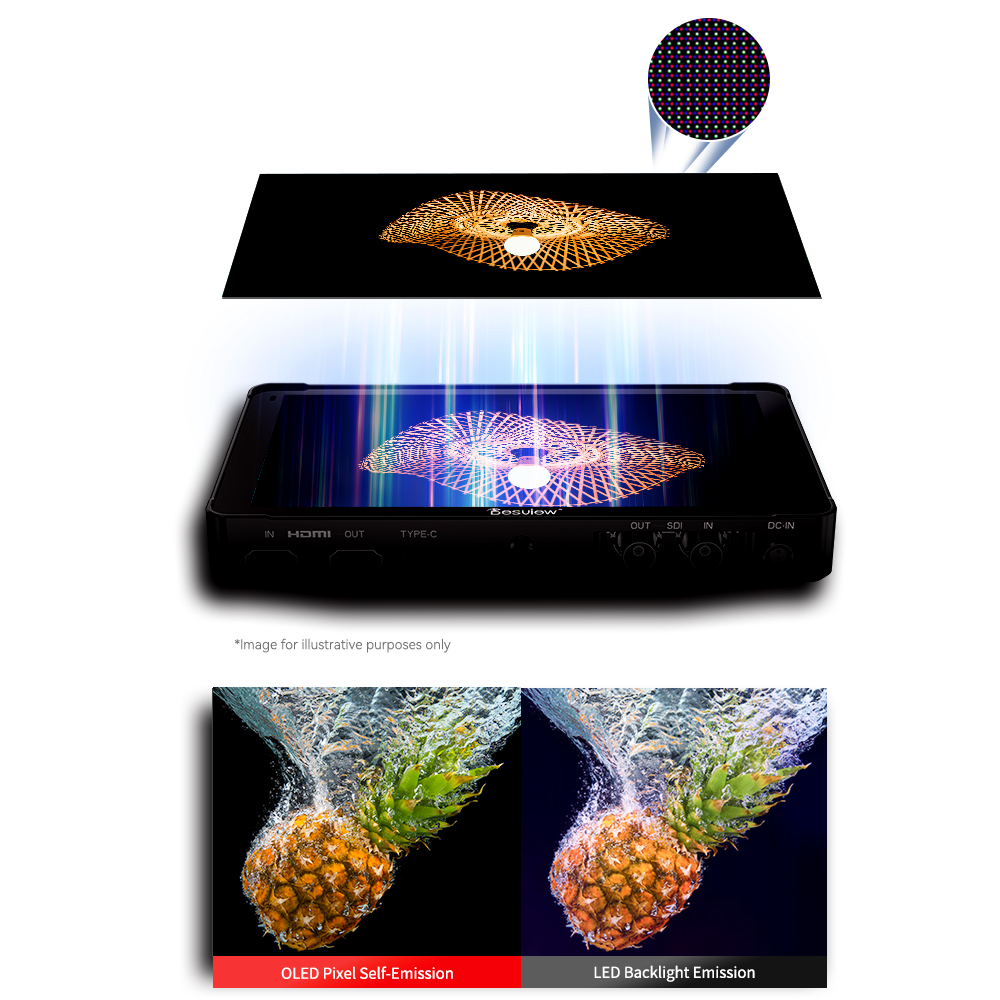

| Faster OLED Pixel Response Time Ensuring Lag-Free Dynamic Display The OLED pixel response time is tens of times faster than traditional LCDs, resulting in smoother, lag-free display of high-speed scenes, where every subtle motion is rendered clearly. |
 |
 |
1200Nits High Brightness Maintaining Detail Clarity Outdoors With a peak brightness of 1200 nits, even in the presence of strong outdoor light, the screen details remain clear and vivid. |
| Aluminum Alloy Ultra-Thin Body Multi-layer Heat Dissipation Design Featuring a lightweight and highly thermally conductive aluminum alloy body, coupled with multiple heat dissipation pathways, significantly improving heat dissipation efficiency and ensuring even distribution of heat. |
 |
 |

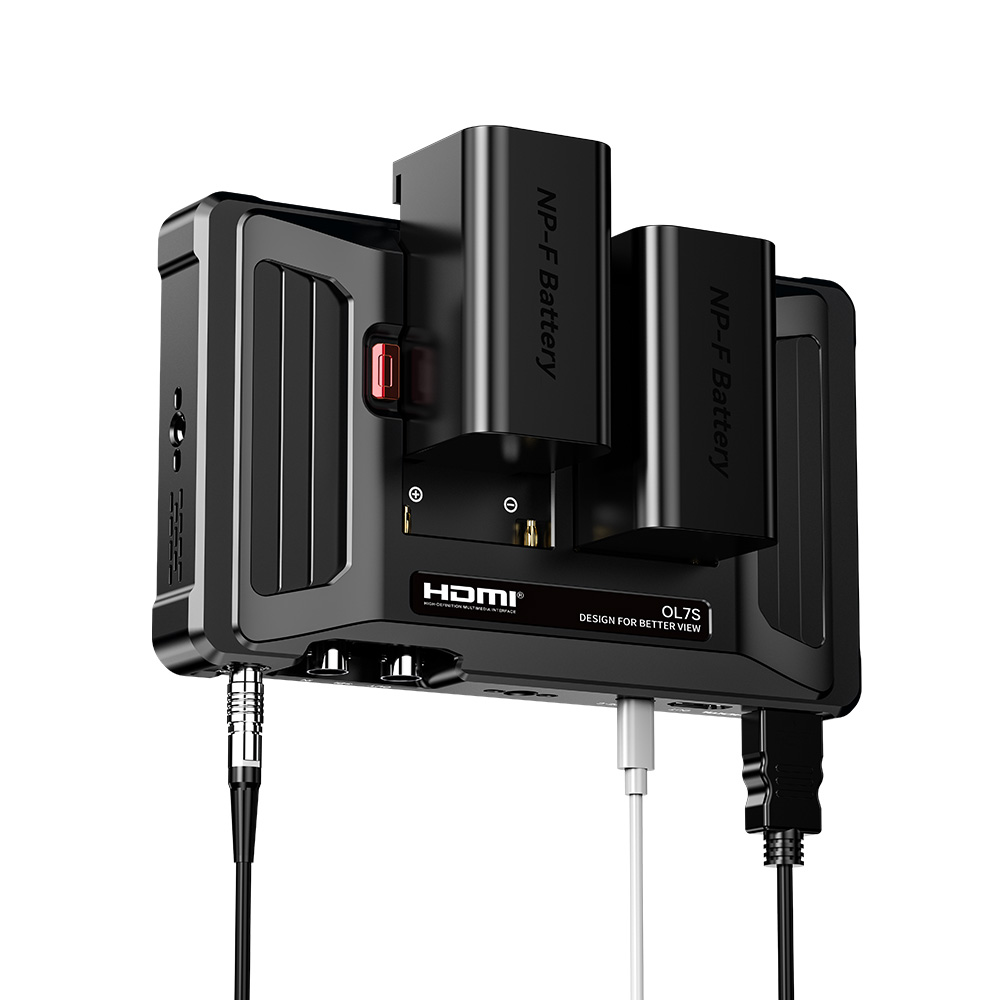

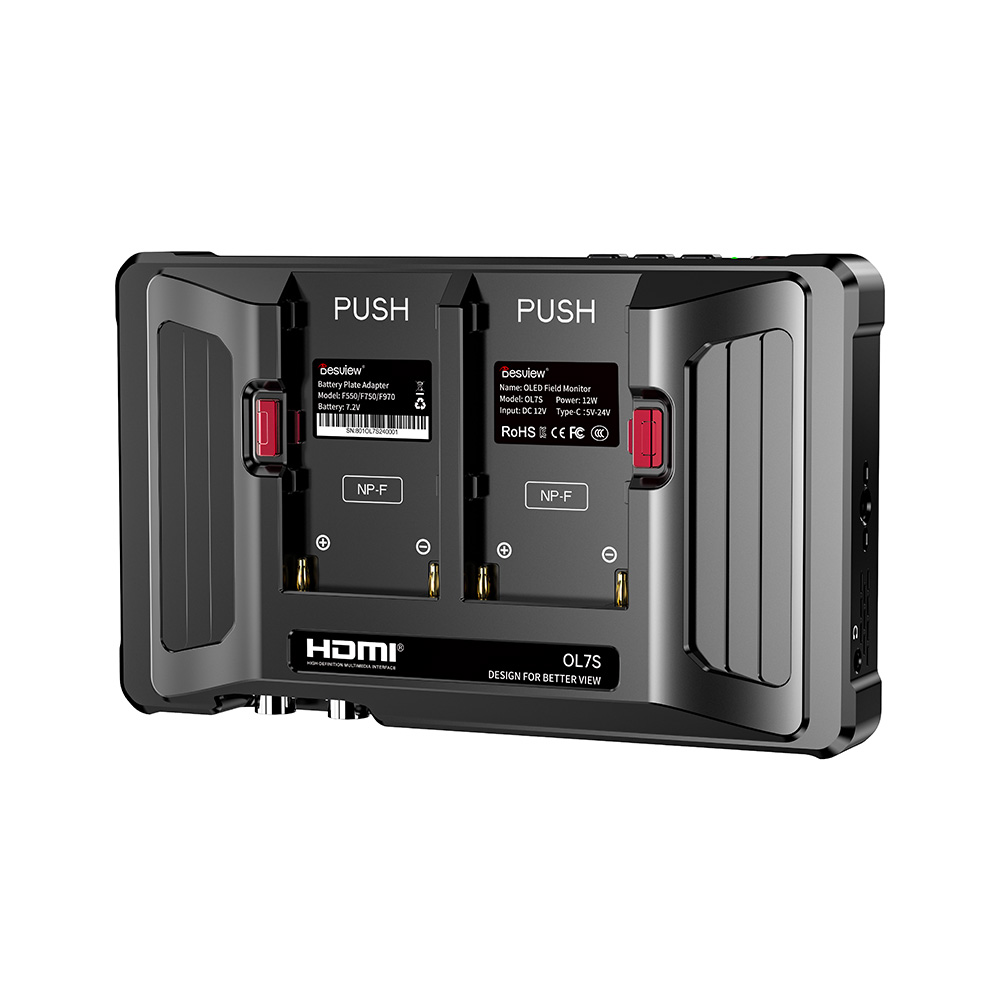

Multiple Power Supply Options Dual Battery Slots for Uninterrupted Power Supply The OL7 features a dual battery slot design, supporting NP-F series batteries for uninterrupted power supply, ensuring efficient progress during filming for production crews. |
| Comprehensive Assistive Function Library Intuitive Control at Your Fingertips Offering a comprehensive set of monitoring assistive functions to ensure precise control over every detail of the captured scene, empowering you to capture every moment perfectly. |
 |
 |
Customizable 3D LUT Custom Shortcut Keys SDI IN & OUT ( OL7S ) |
|
Price Excluding Sales Taxes
USD 329 / EUR 329
USD 399 / EUR 399 |
 |
Product Specification
| Display Parameters | ||
| Model | OL7 | OL7S |
| Screen | 7-inch OLED | |
| Brightness | 1200 Nits | |
| Resolution | 1920 x 1080 | |
| Color Gamut | 99.8% DCI-P3 | |
| Contrast Ratio | 100,000:1 | |
| Display Color | 10-Bit | |
| Aspect Ratio | 16:9 | |
| Viewing Angle | 160° (H/V) | |
| Interfaces | ||
| Signal Input | HDMI 2.0 60Hz | HDMI 2.0 60Hz + 3G-SDI |
| Signal Output | HDMI 2.0 60Hz | HDMI 2.0 60Hz + 3G-SDI |
| Audio Output | 3.5mm stereo | |
| Power |
LEMO IN 7~26V Type-C PD 2.0/3.0 protocol power supply NP-F dual battery plate |
|
| Others | ||
| Casing Material | Aluminum alloy | |
| Operating Temperature | 0°C to 50°C | |
| Storage Temperature | 20°C to 60°C | |
| Dimensions | 179 x 106 x 26mm | 181x108x30mm |
| Packing list | Monitor x1 Storage bag x1 Camera mount x1 Standard HDMI A-A x1 Standard HDMI Micro x1 D-TAP to two-pin LEMO cable x1 |
|
